Industrial Battery Chargers
Reliable AC/DC battery chargers for substations, power plants, industrial facilities and critical DC backup systems.
BC Series Battery Chargers
Interberg BC Series Battery Chargers are designed for critical DC backup applications in power plants, substations, national grids, industrial facilities and infrastructure projects where reliability, long service life and stable DC output are essential.
The chargers are available for single-phase and three-phase AC input, with a wide range of DC output voltages and currents. They can be configured for lead-acid or nickel-cadmium batteries, including vented and valve-regulated battery systems.
Depending on the project requirements, the system can include touch screen operation, analogue meters, remote monitoring, Modbus communication, parallel operation, current sharing, battery protection functions and customized cabinet configurations.
Key Features
Industrial Design
Designed for substations, power plants, industrial facilities and critical DC systems.
Wide DC Range
Available in 24 V, 48 V, 110–125 V, 220–240 V, 400 V and other customized DC outputs.
Battery Compatibility
Suitable for lead-acid and nickel-cadmium batteries, vented or valve-regulated.
Remote Communication
Optional Modbus RTU, Modbus TCP, RS232, RS485 and additional volt-free contacts.
Parallel Operation
Optional parallel configurations, current sharing, master/slave operation and hot stand-by systems.
Long Service Life
Designed for demanding industrial applications with long-term operational reliability.
Available Options
Rectifier & Protection
Battery circuit protection box, reversed polarity detection, low-voltage disconnection contactor, DC earth fault detection and surge protection.
System Configuration
12-pulse rectifier, harmonic filter, ripple filter, blocking diode, parallel operation, hot stand-by configuration and DC distribution.
Battery Monitoring
Battery room temperature sensor, battery monitoring system, cabinet or rack integration and battery current limitation.
Mechanical Design
Special cabinet color, lifting eyes, top cable entry, anti-condensation heater, internal lighting and anti-seismic cabinet design.
Communication

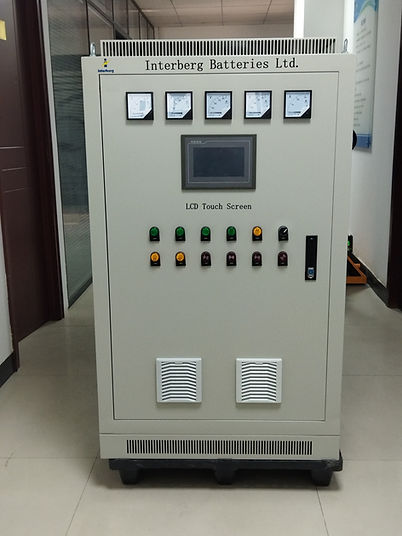

Touch screen HMI, analogue meters, 4–20 mA transducers, Modbus RTU, Modbus TCP and additional volt-free contacts.
Front Panel
Passive or active mimic panel, integrated LED indicators, analogue meters and project-specific front panel layout.
Downloads
Download the technical information for Interberg industrial battery chargers or contact us for a project-specific quotation.
BC Series Brochure
General introduction, applications, input/output ranges and main features.
Technical Data & Options
Detailed input, output, battery, communication, mechanical and system options.
Request a Project-Specific Quotation
Interberg can prepare a tailored quotation according to the required AC input voltage, DC output voltage, charging current, battery type, battery capacity, autonomy, protection requirements, communication interfaces and cabinet configuration.
Please send us your technical specification, single-line diagram, battery data or project requirements and our team will review the most suitable configuration.
